Designed for mechanical fastening and internal thread reinforcement, including nuts, knurled threaded inserts, and various cylindrical or blind-end configurations for different joints and host materials.

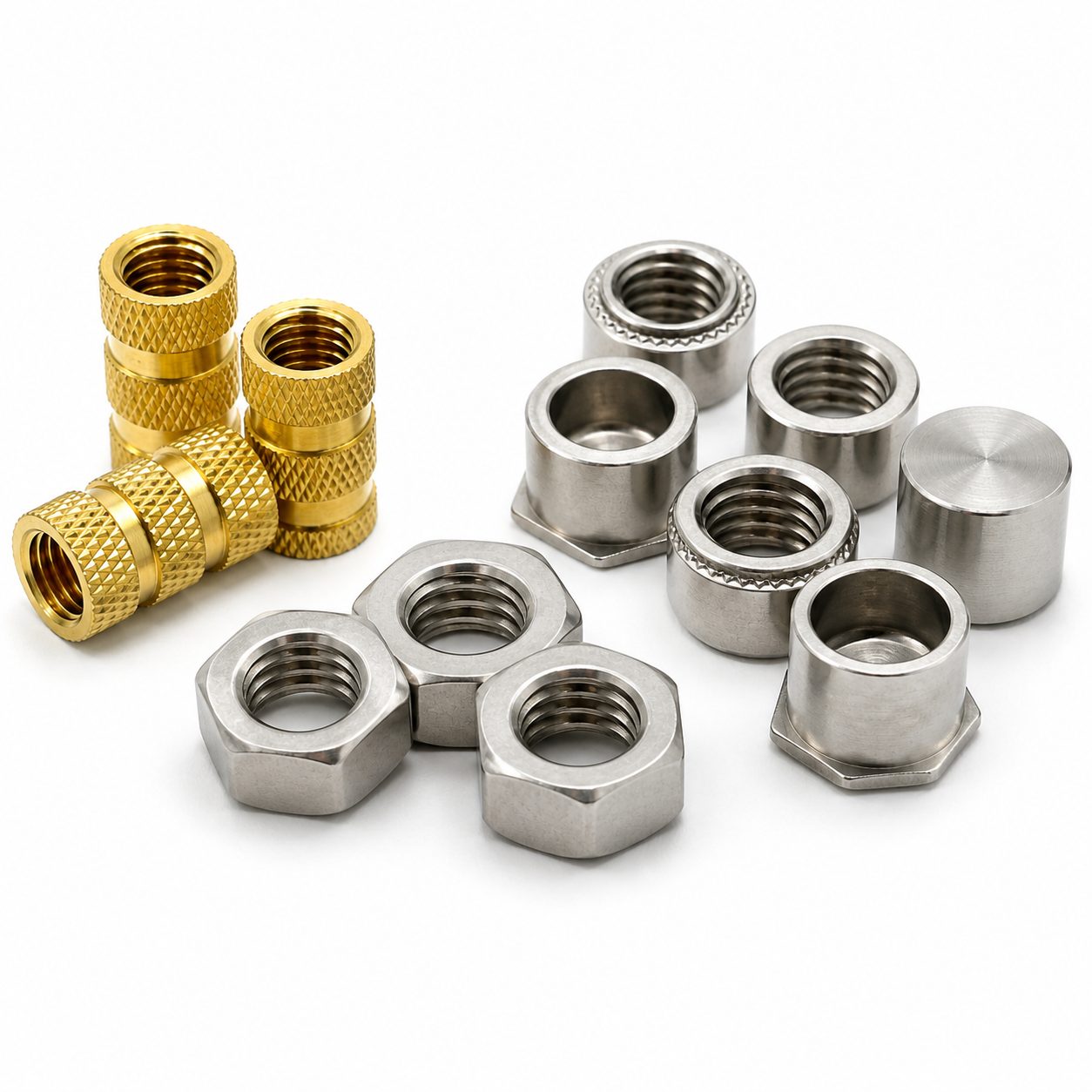

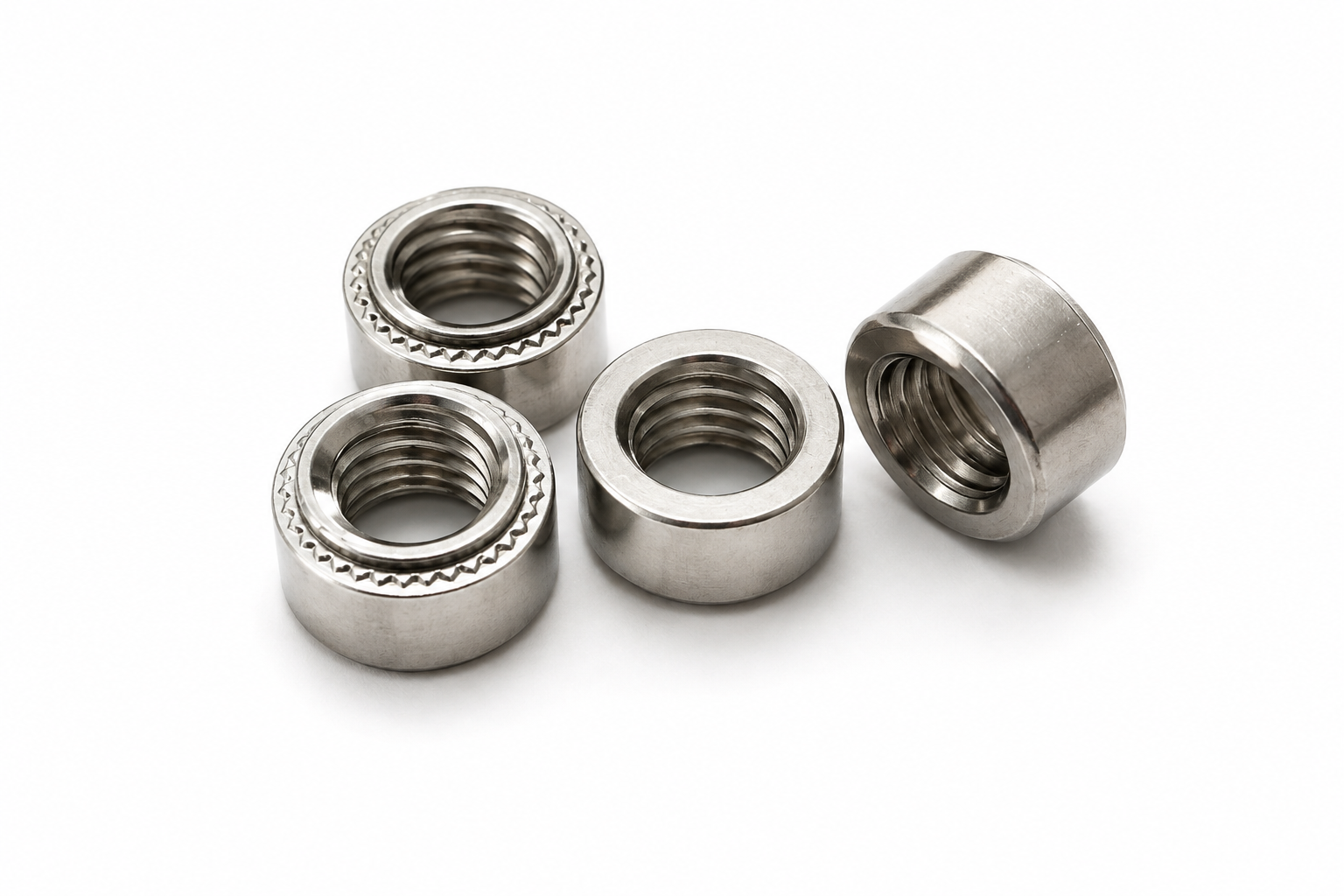

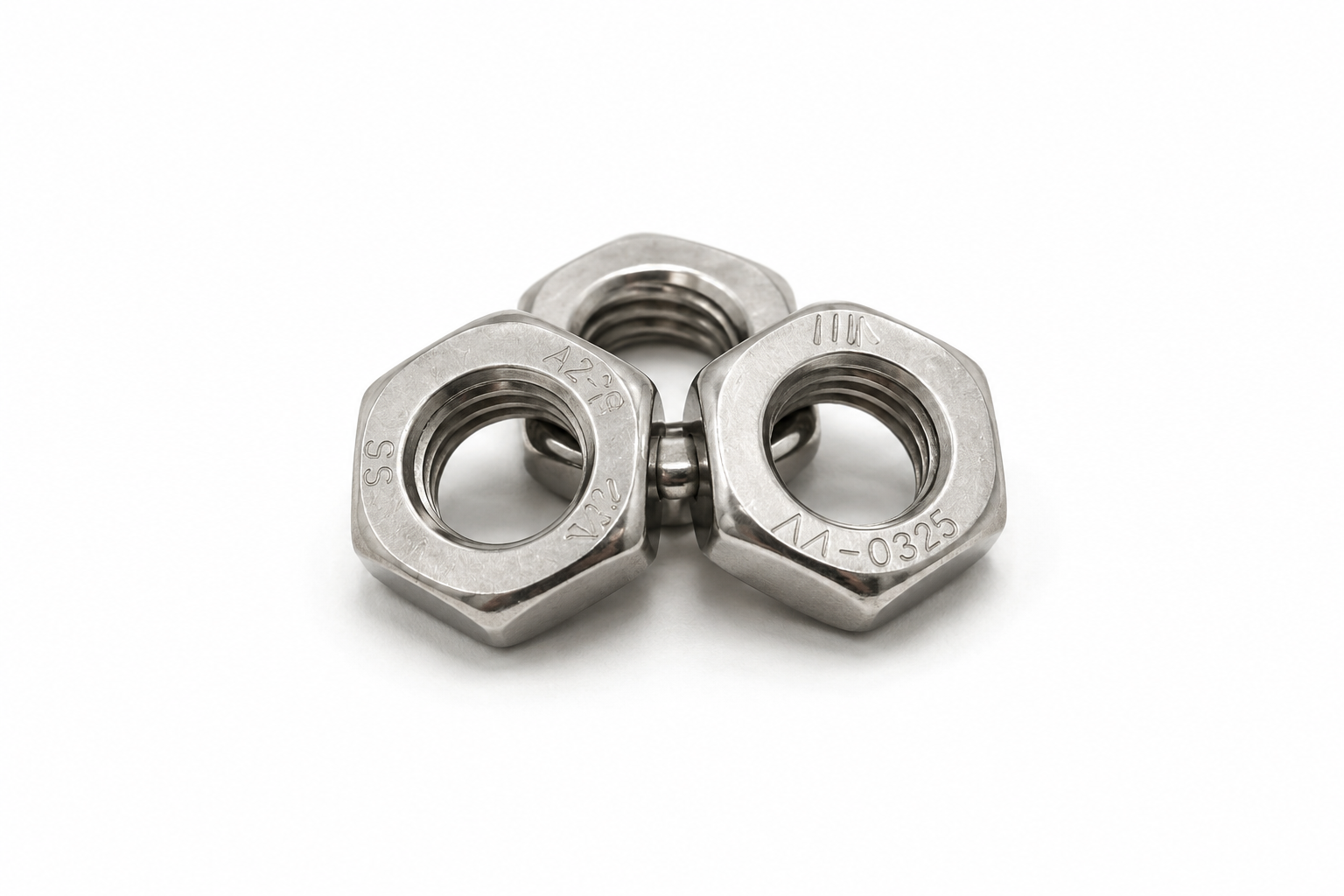

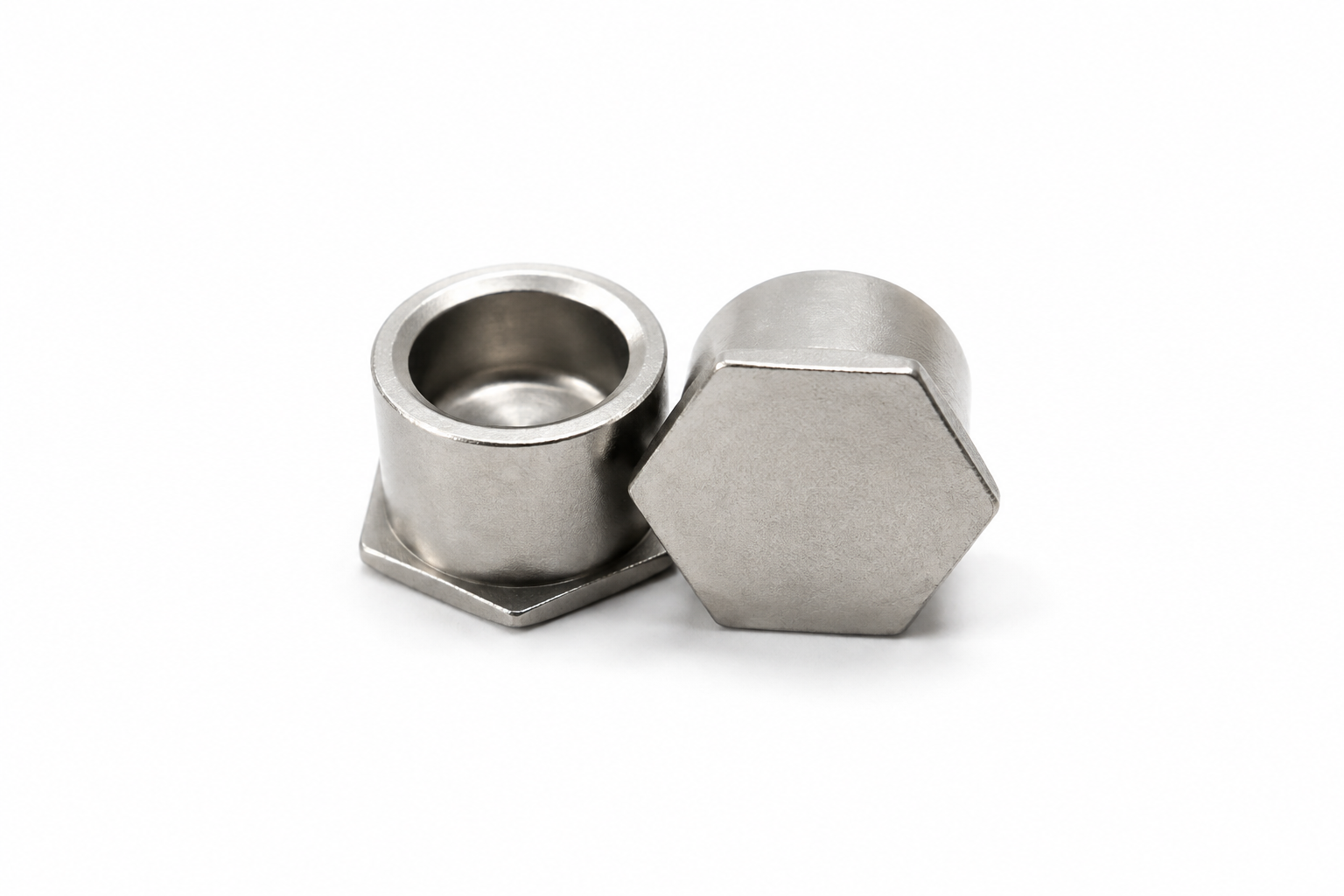

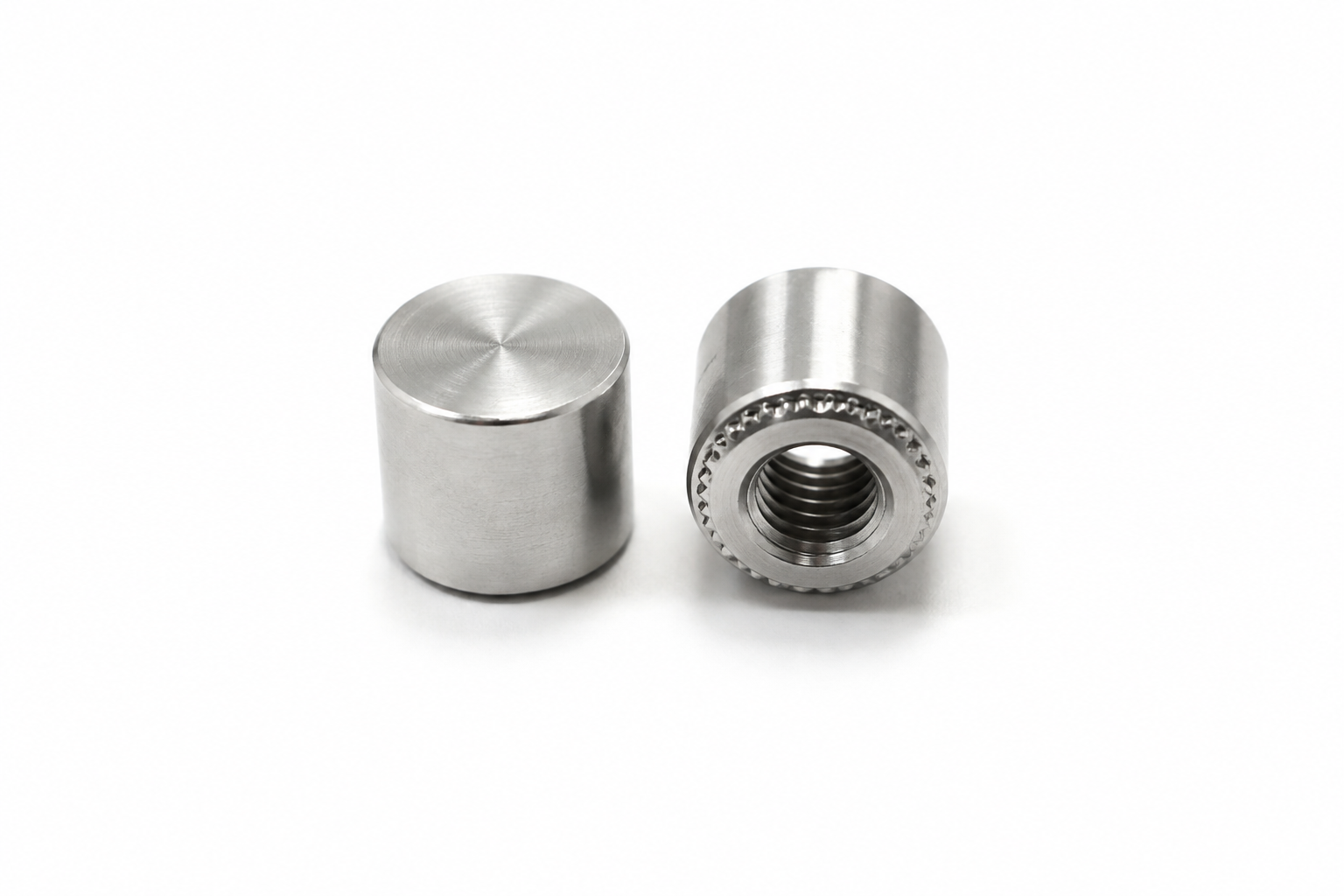

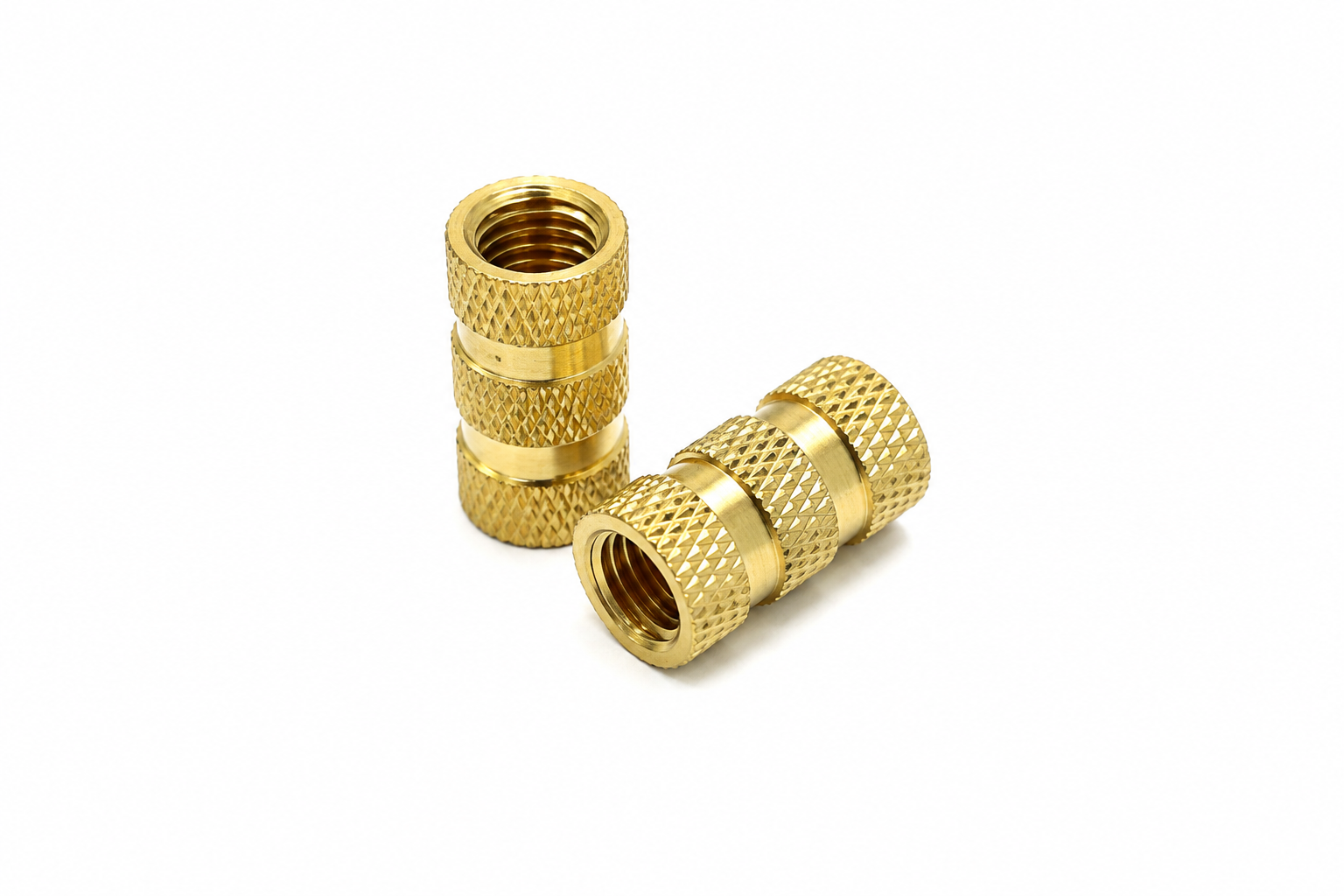

This product group includes standard-profile nuts together with the gold-colored knurled cylindrical inserts, silver cylindrical inserts, serrated-end inserts, and blind-end inserts shown in the reference images. Hex nuts engage with matching bolts or threaded rods, while their external flats allow convenient wrench installation and removal. Threaded inserts establish durable, reusable internal threads in compatible plastic, metal, or other structural components. Knurled, serrated, or locating outer features can help improve rotational resistance and axial retention in a suitable host material. Installation may involve press-in, heat, ultrasonic, molded-in, or other processes depending on the insert design, host material, and drawing requirements; the exact method should not be determined from appearance alone.
Product range includes nuts, knurled threaded inserts, cylindrical inserts, and blind-end inserts.
Internal thread diameter, pitch, and thread system must match the mating bolt or screw.
Hex nuts can be selected by thread size, width across flats, thickness, and property class.
Threaded inserts can be specified by internal thread, outer diameter, length, knurl pattern, end style, and flange configuration.
Through-hole and blind-end designs are available for different installation depths and enclosed appearance requirements.
Material, surface finish, hardness, property class, and applicable standards must be confirmed according to drawings or purchase requirements.
Hole diameter, tolerance, host material, and installation process should be verified for the selected insert type.
Dimensions and structural features can be customized according to drawings or samples.
Application areas: Machinery assembly / Thread reinforcement in plastic housings / Electronic and electrical components / Automotive parts / Furniture and hardware joints / Industrial fixtures / Instruments and equipment / Custom industrial assemblies
