Flat Washers & External-Tooth Lock Washers
Designed for use with bolts, screws, and nuts. Flat washers enlarge the bearing area, distribute clamping load, and help protect the mounting surface, while external-tooth lock washers engage the contact surface with radial teeth to increase resistance to rotational loosening.

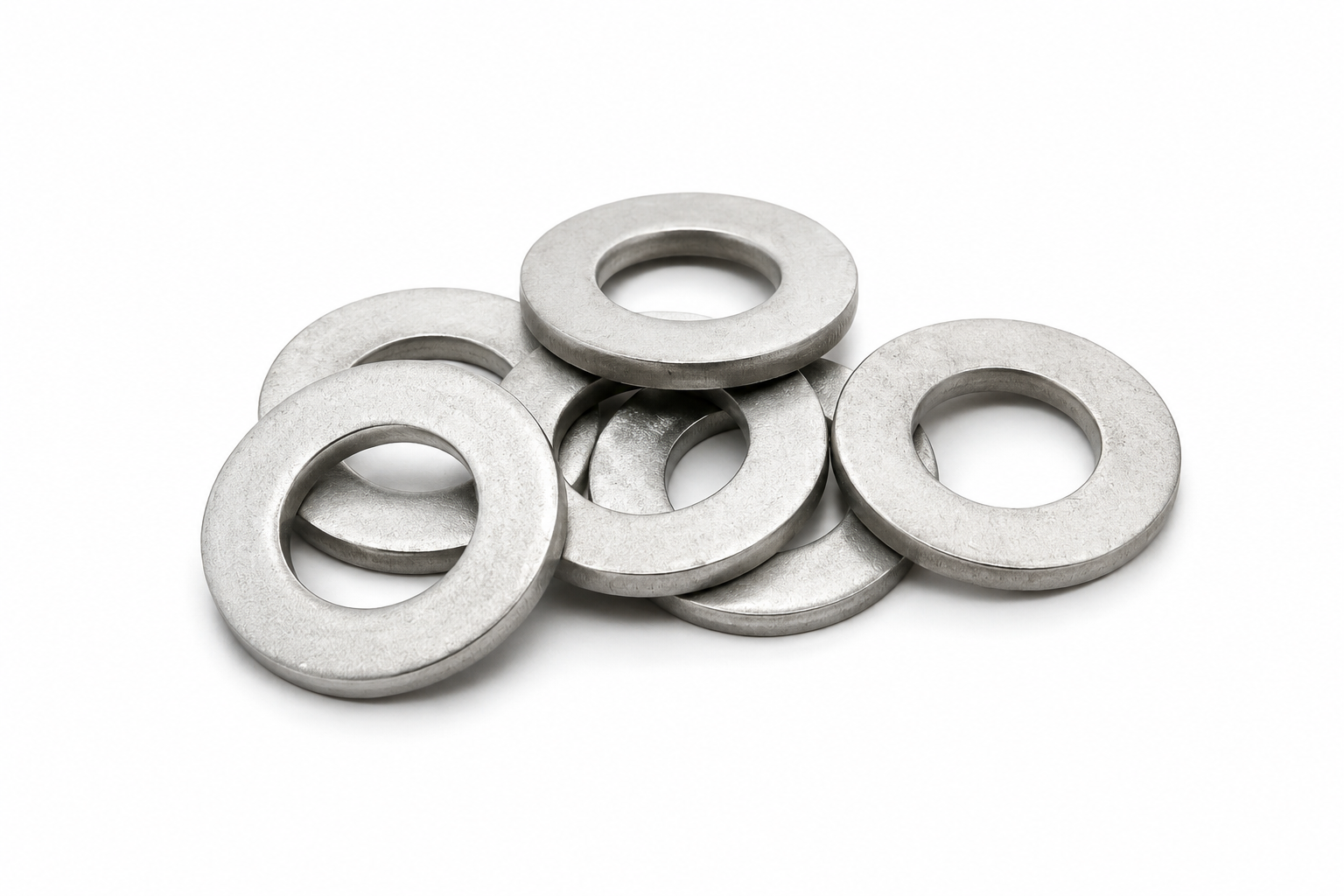

This product range includes flat washers and external-tooth lock washers. Flat washers feature a simple annular design and are installed between the bolt head, screw head, or nut and the workpiece. They provide a stable bearing surface, distribute clamping pressure, and help reduce localized indentation or surface damage. External-tooth lock washers feature evenly distributed radial teeth around the outer edge. When tightened, the teeth engage the underside of the fastener and the mating surface, increasing rotational resistance in assemblies requiring supplementary locking performance. Inner diameter, outer diameter, thickness, tooth geometry, material, and surface finish should be selected according to the mating fastener, operating environment, and approved drawings.

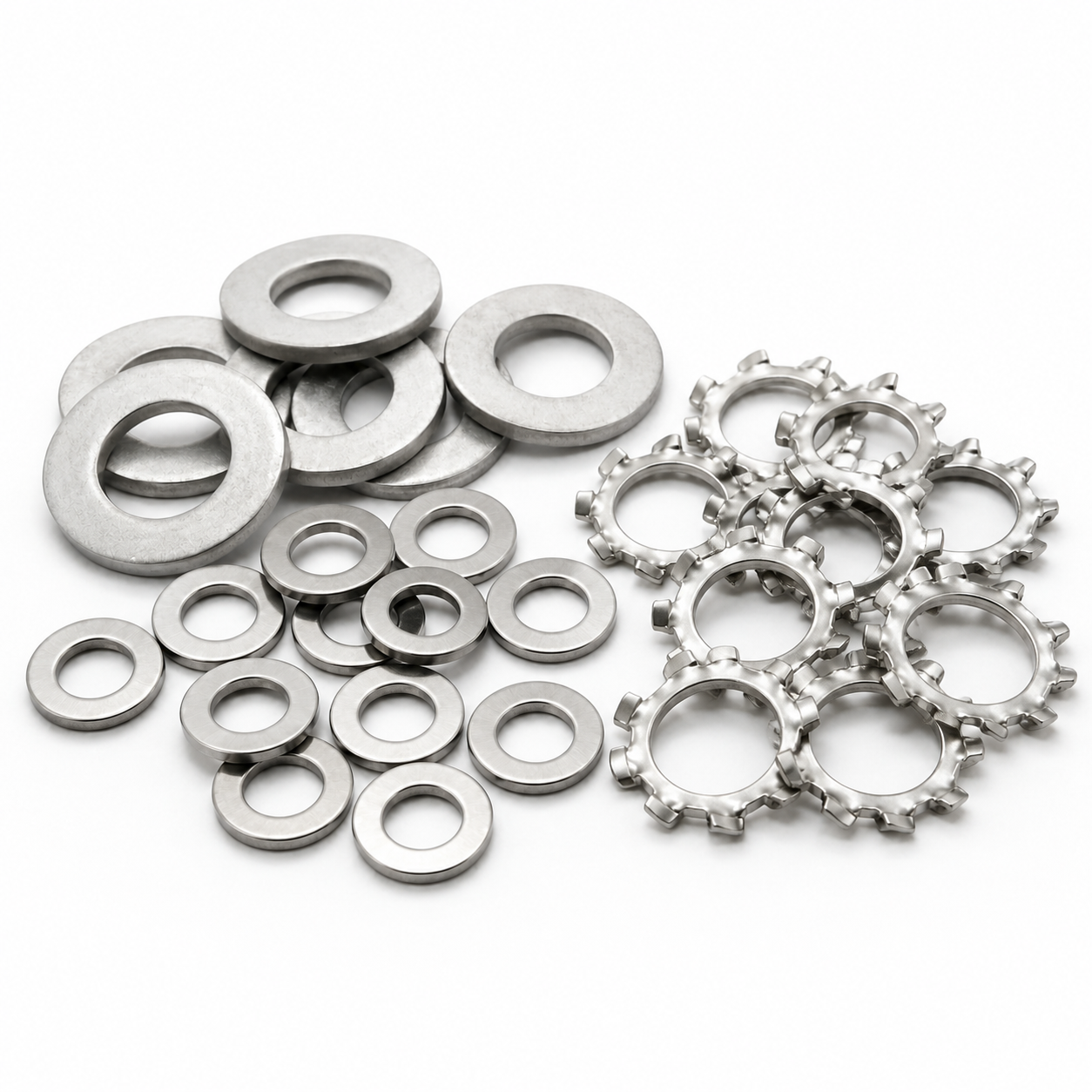

Product types: Flat washers and external-tooth lock washers.

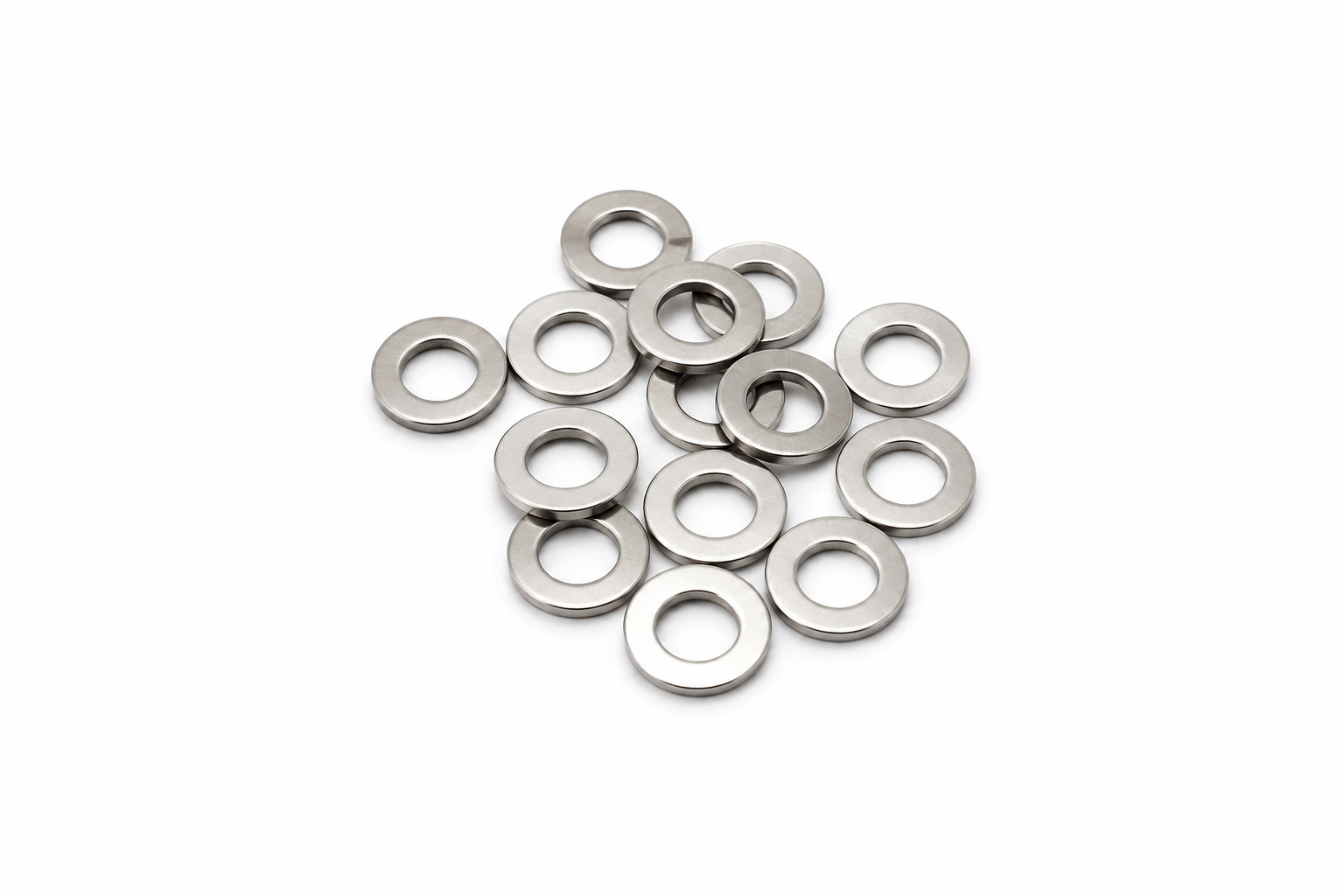

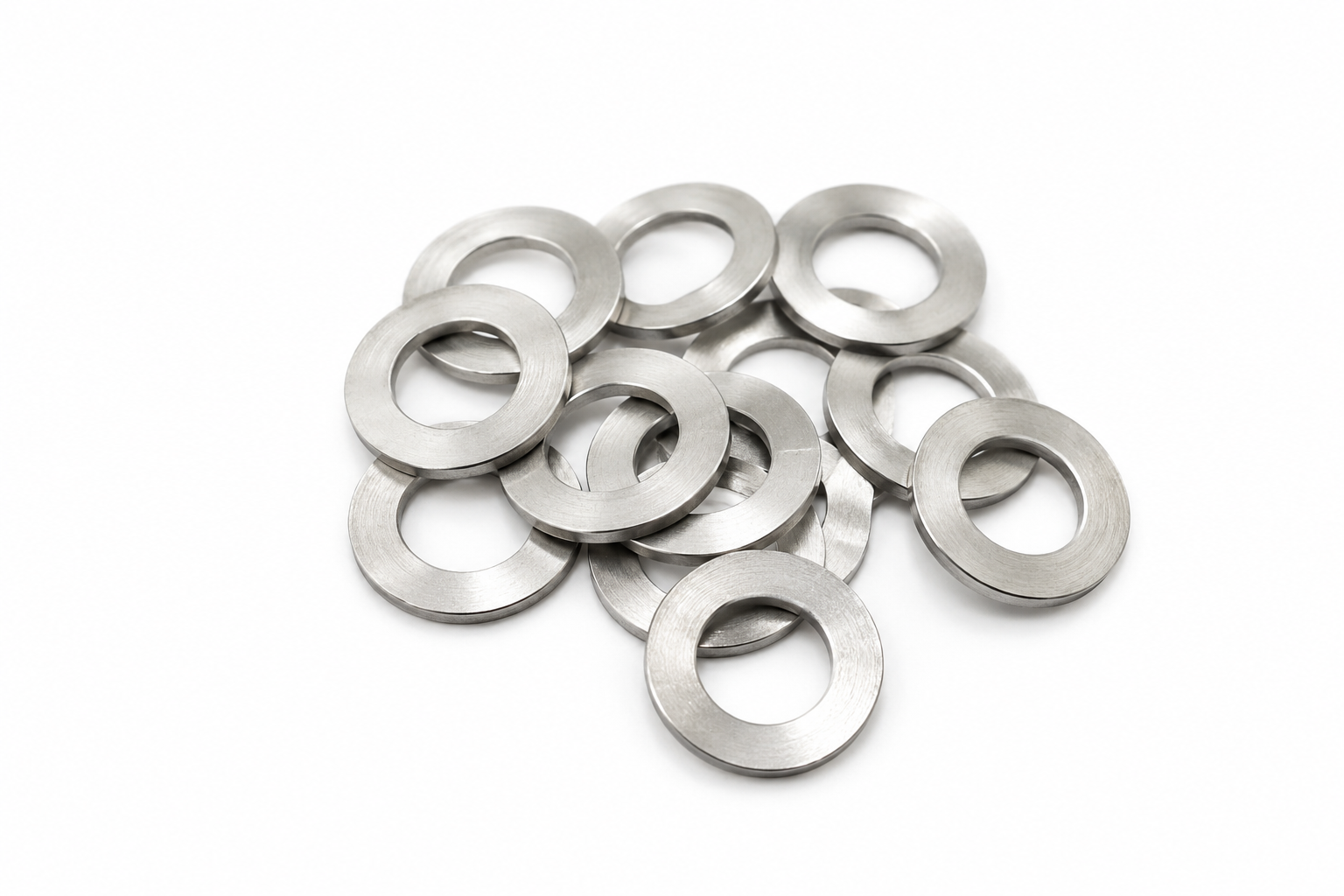

Flat washers provide a level bearing surface and help distribute clamping load.

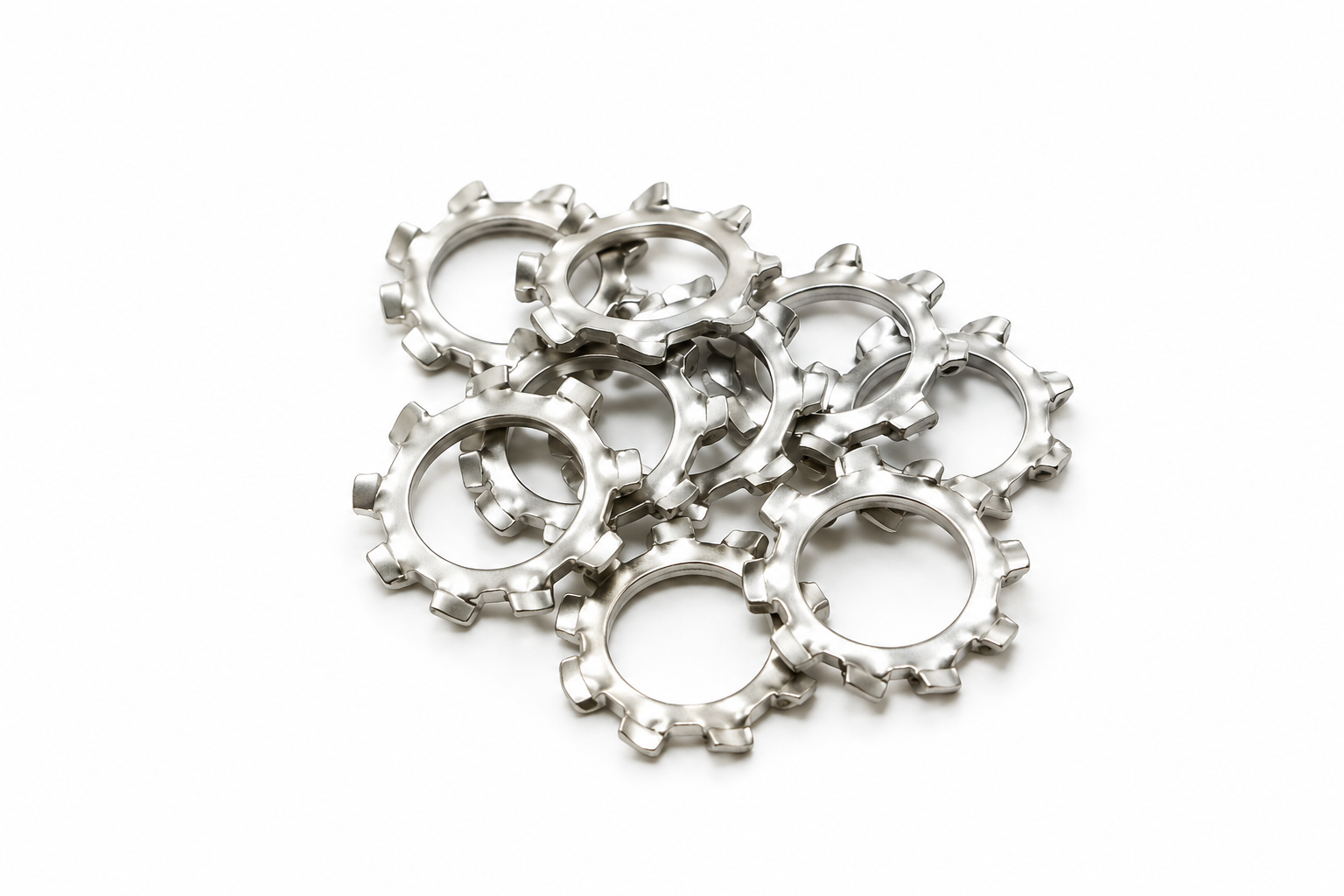

External teeth increase mechanical engagement and rotational resistance at the contact surface.
Suitable for use with bolts, machine screws, screw assemblies, and nuts.
Key dimensions include inner diameter, outer diameter, and thickness.
External-tooth versions also require confirmation of tooth count, tooth profile, tooth height, and tooth orientation.
Material, hardness, surface finish, and applicable standard shall be based on the purchase order or approved drawing.
For ISO, DIN, ASME, or other standard products, the exact standard number and size should be confirmed before ordering.
Application areas: Machinery assembly / Electrical cabinets and control enclosures / Electronic equipment fastening / Furniture and hardware fittings / Automotive component assembly / Industrial fixtures and bracket mounting / General bolted and screwed joints
